Brief introduction:
The wall is made up of anti-static PVC thin film, or strip anti-static PVC door curtain; stainless steel or aluminum alloy frame; It exhibits simple structure, easy installation and convenient shifting and is applicable to clean room of 100 levels to 100,000 levels.
| Item | Soft wall modular clean room | |
| Cleanliness | Class 100 to Class 100,000 | |
| Boundary dimensionLXWXH | Designed as per customer’s requirements | |
| FFU | Dimension | 2X2, 2X4, 4X4 optional |
| Structural material | Stainless steel, aluminum alloy, Al-Zn plate | |
| Power supply | 110V/60HZ/AC/DC、220V/60HZ/AC/DC | |
| Filter | Mini pleat HEPA filter/ULPA filter optional | |
| Material of frame | Aluminum alloy / stainless steel SUS | |
| Material of wall | Anti-static PVC thin film or soft curtain | |
| Thickness: 0.5MM-2MM | ||
| Ceiling | Aluminium-plastic panel, sandwich board | |
| Item | Soft wall modular clean room | |
| Lighting | Clean lighting | LED/T5 optional |
| Air conditioner | Design as per requirements | Constant temperature air conditioning /constant temperature and constant humidity air-conditioner; optional |
| Air shower | Optional | |
| Pass box | Optional | |
| buffer room | Optional | |
| Airflow floor | Optional | |
| Assembly line | Optional | |
| Clean bench | Optional | |
| Other clean room facilities | Carry out design and installation as per customer requirements | |
Selection of soft wall module clean room
| Recommended configuration on filter / fan | |||||
| Size (mm) | Quantity of installed ceiling | Number of filter of level 209 as per the Federal Reserve standard | |||
| 1 | 10 | 100 | 1000 | ||
| 8x8(2438x2438) | 8 | 5-8 | 4-8 | 3-6 | 2-3 |
| 8x12(2438x3658) | 12 | 7-12 | 6-12 | 4-8 | 3-5 |
| 8x16(2438x4877) | 16 | 10-16 | 8-16 | 6-11 | 4-6 |
| 12x12(3658x3658) | 18 | 11-18 | 9-18 | 6-13 | 5-7 |
| 12x16(3659x4877) | 24 | 14-24 | 12-24 | 8-17 | 7-10 |
| 16x16(4877x4877) | 32 | 19-32 | 16-32 | 11-22 | 8-13 |
| 20x20(6096x6096) | 50 | 30-50 | 25-50 | 18-35 | 13-20 |
Note: Besides specification above, we can customize as required.

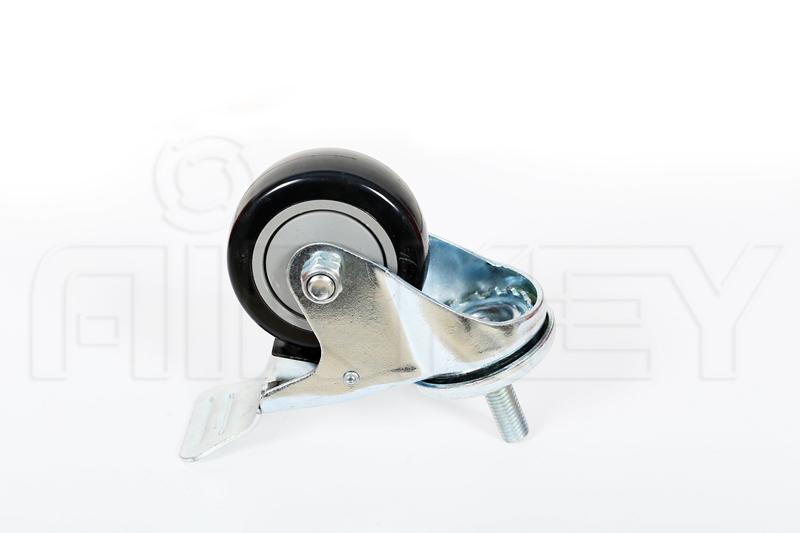

Characteristics of all the parts:
Structure: The frame of soft wall clean booth has two selections: SUS stainless steel and aluminum alloy;
The SUS stainless steel can resist corrosion and has high structural strength; aluminium alloy structure leads to easy assembly, standard accessories and good airtightness;
Ceiling:Aluminium-plastic panel is light in weight, easy to install, and has multiple colors for selection;
The sandwich board ceiling has great strength and excellent thermal insulation property; higher requirement for large-area temperature and humidity, good choice for clean room (Ivory white is usually adopted.)
Wall: Transparent anti-static PVC is low in price. The anti-static PVC sheet may lead the surface static electricity to the underground to keep the surface from absorbing dust or fiber. It is applicable to modular clean room that requires high demand for cleanliness and static.
FFU: Excellent energy-saving draught fan will be adopted, whose noise and energy consumption are on the low side. Meanwhile, the draught fan can be designated by customers, such as EBM of Germany. The casing is made of aluminized and galvanized plate, stainless steel or aluminum steel.
Control system: The control system has been developed by AIRKEY on its own. FFU is controlled in group or is under centralized control of PLC. It can regulate the wind speed, differential pressure, temperature and humidity of EFU (applicable to system with air conditioner).
Other optional accessories (directly connected with related products)
Air shower
Delivery window
Automatic door
Fast rolling door
