Rock wool Sandwich Panel is applicable to project with fairly high demand upon fire protection. And it has a good feature in noise reduction, specially suitable for the place where is high requirement in the sound-insulation.

Specification:
①　Regular thickness:50mm, 75mm, 100mm, 125mm, 150mm(according to the   requirement of customers)
②　Effective width: 950mm, 1150mm
③　Length:It depends on project requirement and transportation condition
④　Core material: rock wool
⑤　Characteristic: The ability of the fireproof of the rock wool sandwich panel is over 900℃
⑥　Fire proof: 30 minutes
⑦　Sound proof: confirming ISO 717/82&uni18270/7
⑧　Installation structure: Rabbet joint

Form of the spans of rock wool sandwich panel house (Deformation controlled under L/200)

Via testing according to ISO 717/82 and UNI18270/7 standards, selecting the rock wool which with the density 105kg/m3 and the thickness 50-100mm as the core, the sound coefficient will achieve RW = 29-30dB.

Excellent fire resistance:
According to the test of the Italy authority organization Istituto Giordano S.P.A, the fireproofing margin of rock wool sandwich panel is as below: (take the wall panel as the example)
Thickness: 100mm (REI) 120 minutes
          75mm (REI) 60 minutes
          50mm (REI) 30 minutes
The fireproof degree of rock wool panels of 50-75-100mm are 0/1 (with their fire-proof degrees from high to low is 0,1,2,3,4,5).

Feature：
1. Fire Proof: 30minutes
2. Weather Proof
3. Sound Proof: confirming ISO717/82&UNI18270/7 standards specially suitable for the place where is high requirement in the sound-insulation
4. Fireproof: The fireproof degree of rock wool panels of 50-75-100mm are 0/1 (with their fire-proof degrees from high to low is 0,1,2,3,4,5).

Applications：

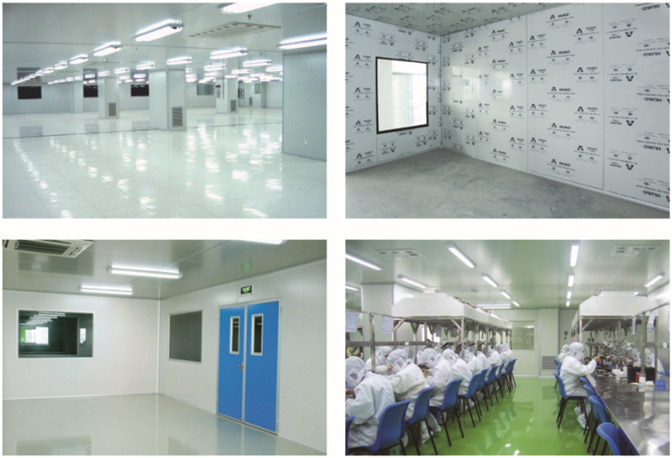

Widely used in: Purifying factory, combined house, indoor partition, specially suitable for the place where is high requirement in the sound-insulation.
