Brief introduction
Pass box is auxiliary equipment mainly used for passing small objects between 2 clean areas or between clean areas and unclean areas. Pass box reduces the times of closing and opening of the clean rooms, which helps to maintain a reasonable air pressure in the clean room. Pass box keeps the contamination condition to the lowest.
Features:
1. Case is made of electrogalvanized metal sheet, and the surface is treated with baking varnish.
2. Working area is made of imported stainless steel. The surface is tidy and bright.

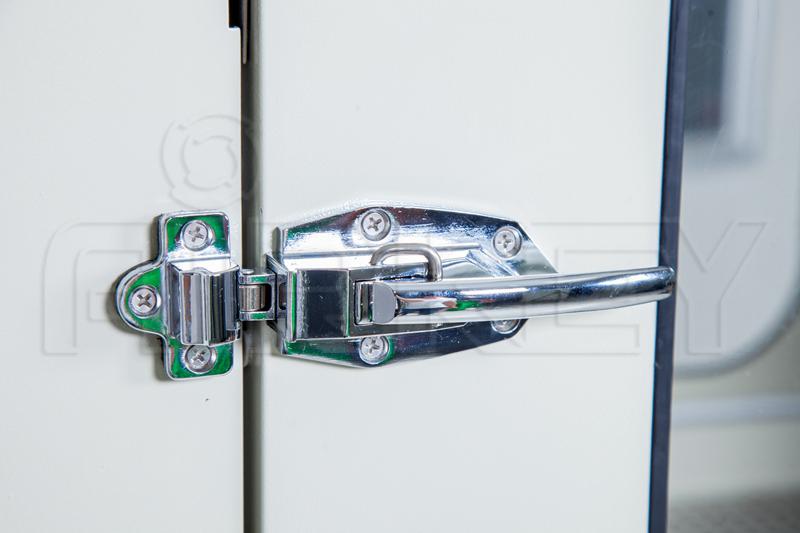

3. Mechanical or electronic interlocking to ensure that the two doors will not open simultaneously.
4. Professional and fast design capabilities. OEM is welcomed.
Configuration optional:
a. Stainless steel for both the inner and outer construction
b. Intercom system
c. Ultraviolet sterilamp / yellow light
d. Buzzer
e. Non-flooring-plate design (easy for light- weight vehicle in and out)
f. Non-standard design and dimensions are welcomed.
MODEL | PB50-E | PB60-E | PB50-M | PB60-M |
ExternalDinension W×H×D(mm) | 700×640×580 | 800×640×580 | 660×560×470 | 760×560×470 |
InternalDinension W1×H1×D1(mm) | 500×500×400 | 600×600×600 | 500×500×400 | 600×600×600 |
Voltage | 220V 50Hz/AC |
Max.Consumption | 45W |
Power Cord(mm) | 800L |
Construction-External | Electrogalvanize Metal Sheet |
Internal | SUS304 |
Colour | Polished White(optional) |
Finishing | Powder Coating |
Wall Operning Size | W+10mm,H+5mm |
