Brief introduction:

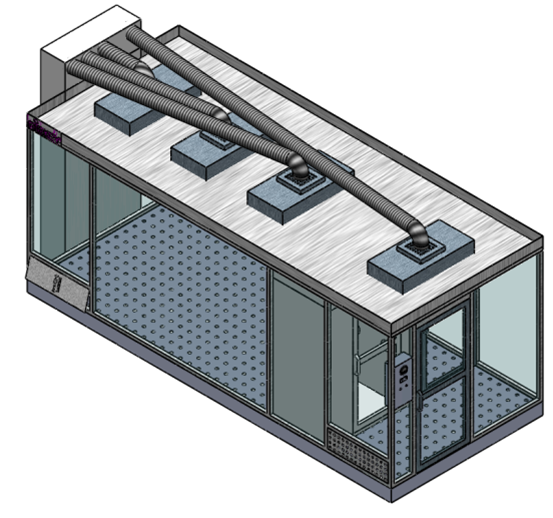

Constant temperature and humidity air conditioner is installed to regulate the temperature and humidity within MCR. It is applicable to areas in which constant temperature and humidity are required. The MCR produces vertical laminar flow to rapidly eliminate pollutants and resume to clean condition in a short time;
Characteristic:
A. The clean room can be quickly installed in the existing ordinary environment, and improve the working environment.
B. Low cost, high speed and easy upgrading.
C. The structure is solid and can stand independently and freely.
D. Cleanliness: from Class 100 to Class 100,000
E. Application: Bio-pharmaceuticals, medical, food, photoelectricity, semiconductor and so on, improving the working environment quickly.
| Item | Hard wall modular clean room | |
| Cleanliness | Class 100 to Class 100,000 | |
| Boundary dimensionLXWXH | Designed as per customer’s requirements | |
| FFU | Dimension | 2X2, 2X4, 4X4 optional |
| Structural material | Stainless steel, aluminum alloy, Al-Zn plate | |
| Power supply | 110V/60HZ/AC/DC、220V/60HZ/AC/DC | |
| Filter | Mini pleat HEPA filter/ULPA filter optional | |
| Material of frame | Aluminum alloy / stainless steel 201/SUS 304 | |
| Material of wall | Acrylic / Sanwich panel / Anti-static acrylic 106～109Ω | |
| Ceiling | Aluminium-plastic panel, sandwich panel | |
| Item | Hard wall modular clean room | |
| Lighting | Clean lighting | LED/T5 optional |
| Air conditioner | Design as per requirements | Constant temperature air conditioning /constant temperature and constant humidity air-conditioner; optional |
| Air shower | Optional | |
| Pass box | Optional | |
| buffer room | Optional | |
| Airflow floor | Optional | |
| Assembly line | Optional | |
| Clean bench | Optional | |
| Other clean room facilities | Carry out design and installation as per customer requirements | |
Selection of hard wall modular clean room
| Common specifications on module clean room | |||||
| Size (mm) | Quantity of installed ceiling | Number of filter of level 209 as per the Federal Reserve standard | |||
| 1 | 10 | 100 | 1,000 | ||
| 8x8(2438x2438) | 8 | 5-8 | 4-8 | 3-6 | 2-3 |
| 8x12(2438x3658) | 12 | 7-12 | 6-12 | 4-8 | 3-5 |
| 8x16(2438x4877) | 16 | 10-16 | 8-16 | 6-11 | 4-6 |
| 12x12(3658x3658) | 18 | 11-18 | 9-18 | 6-13 | 5-7 |
| 12x16(3659x4877) | 24 | 14-24 | 12-24 | 8-17 | 7-10 |
| 16x16(4877x4877) | 32 | 19-32 | 16-32 | 11-22 | 8-13 |
| 20x20(6096x6096) | 50 | 30-50 | 25-50 | 18-35 | 13-20 |
Note: Besides specification above, we can customize as required.

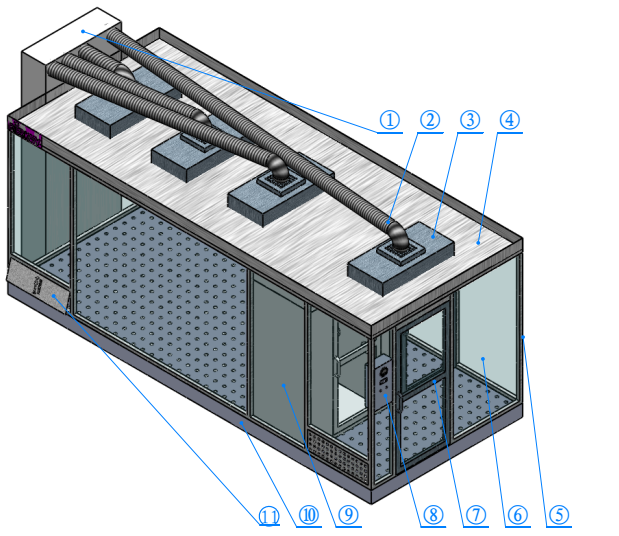

Characteristics of all the parts:
Structure: The frame of hard wall clean booth has two selections: SUS stainless steel and aluminum alloy;
The SUS stainless steel can resist corrosion and has high structural strength; aluminium alloy structure leads to easy assembly, standard accessories and good airtightness;
Ceiling: Aluminium-plastic panel is light in weight, easy to install, and has multiple colors for selection;
The sandwich board ceiling has great strength and excellent thermal insulation property; higher requirement for large-area temperature and humidity, good choice for clean room (Ivory white is usually adopted.)
Wall: Transparent acrylic sheet is high in strength and low in price. The anti-static acrylic sheet may lead the surface static electricity to the underground to keep the surface from absorbing dust or fiber. It is applicable to modular clean room that requires high demand for cleanliness and static.
FFU: Excellent energy-saving draught fan will be adopted, whose noise and energy consumption are on the low side. Meanwhile, the draught fan can be designated by customers, such as EBM of Germany. The casing is made of aluminized and galvanized plate, stainless steel or aluminum steel.
Control system: The control system has been developed by AIRKEY on its own. FFU is controlled in group or is under centralized control of PLC. It can regulate the wind speed, differential pressure, temperature and humidity of EFU (applicable to system with air conditioner).
Other optional accessories (directly connected with related products)
Air shower

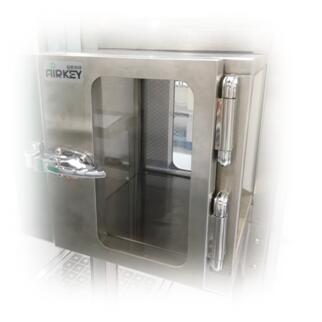

Delivery window
Automatic door
Fast rolling door
